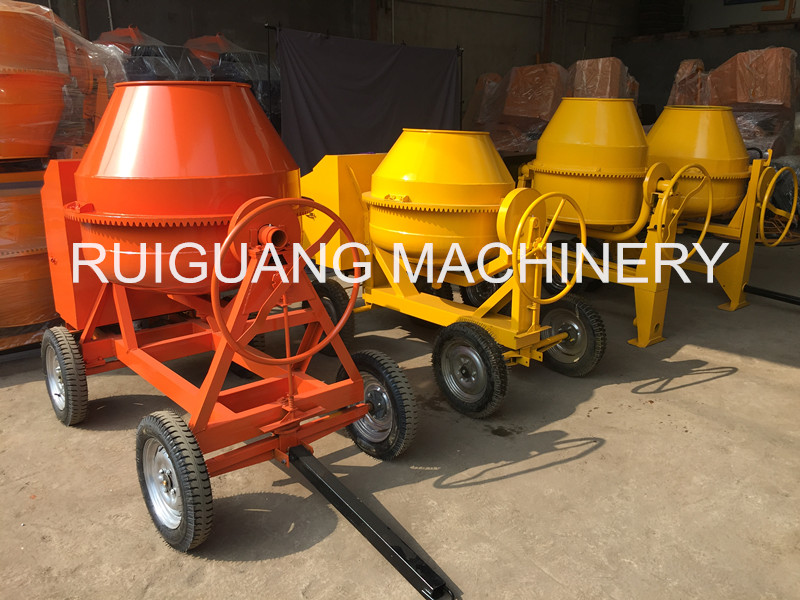

Tilting drum type concrete mixer without fed hopper

Introduction

China leading small-medium-large sized side tilting concrete mixer. Robust build and quality parts. Ruiguang mixer is available with a fast tow build, improving mobility and versatility.

Advantages

A low cost, Hand-fed/mechanically fed manual tilting drum mixer
100 litres,150 litres,175 litres,200 litres, 260 litres, 375 litres,400 litres,550 litres mixed batch output
High capacity mixer capable of producing up to 30 batches (12 cubic metres) per hour
Robustly engineered with fully enclosed drivelines, provide safe, reliable performance and long service life
Multi-position lockable drum, Highly efficient , spun steel drum
Outrigger legs maintain stability throughout the loading cycle

Technical parameters (350L type)


Model	RGCM-4C 350D	RGCM-4C 350R	RGCM-4C 350G	RGCM-4C 350E
Engine Option	Air-cooled Diesel  Engine 178FS	Water-cooled Diesel Engine R175	Gasoline  engine	Electric motor
Engine Power	6HP	6HP	6.5HP	110V/220V/380V 3KW
Drum total volume	350L-0.35m³-12cu.ft
Unmixed capacity	280-0.28m³-10cu.ft
Mixed capacity	235-0.235m³-8cu.ft
Drum rotation speed	25-30 rpm
Quantity of Batches per hour	20 cycles
Output per hour	4700L-4.7m³-160cu.ft
Packing Size (L×W×H mm)	1860x860x1100
