Ball mill

Brief Introduction of Ball Mill

Ball mill is the key equipment for re-grinding the materials after they are coarsely crushed. It is widely used for the dry or wet grinding of all kinds of ores and other grindable materials in the production industries of cement, silicate product, new building material, refractory, fertilizer, ferrous and non-ferrous metal dressing and glass ceramics. There are two types of ball mills produced by Ruiguang Machinery: overflow ball mill and lattic ball mill.

Structure of Ball Mills

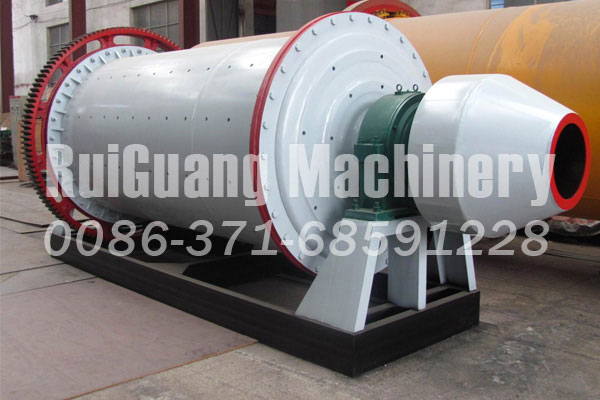

The ball mill machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft is made of cast steel and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

Working principle of Ball Mill

This machine is a horizontal type cylinder rotary device and outside the cylinder there is drive gear which drives the cylinder to rotate during the working process. Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the single-layer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.

Parameters Of Ball Mill

Model	Shell rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity	Motor power(kw)(kw)	Weight(t)
					(t/h)
Ø900*1800	36--38	1.5	<=20	0.075-0.89	0.65-2	18.5	5.5
Ø900*3000	36	2.7	<=20	0.075-0.89	1.1-3.5	22	6.7
Ø1200*2400	36	3	<=25	0.075-0.6	1.5-4.8	30	12
Ø1200*3000	36	3.5	<=25	0.074-0.4	1.6-5	37	12.8
Ø1200*4500	32.4	5	<=25	0.074-0.4	1.6-5.8	55	13.8
Ø1500*3000	29.7	7.5	<=25	0.074-0.4	2-5	75	16.8
Ø1500*4500	27	11	<=25	0.074-0.4	3-6	110	21
Ø1500*5700	28	12	<=25	0.074-0.4	3.5-6	130	25.8
Ø1830*3000	25.4	11	<=25	0.074-0.4	4-10	130	29
Ø1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	35.5
Ø1830*6400	24.1	21	<=25	0.074-0.4	6.5-15	210	43
Ø1830*7000	24.1	23	<=25	0.074-0.4	7.5-17	245	43.8
Ø2100*3000	23.7	15	<=25	0.074-0.4	6.5-36	155	34.8
Ø2100*4500	23.7	24	<=25	0.074-0.4	8-43	245	38
Ø2100*7000	23.7	26	<=25	0.074-0.4	8-48	280	56.6
Ø2200*4500	21.5	27	<=25	0.074-0.4	9-45	280	51.8
Ø2200*6500	21.7	35	<=25	0.074-0.4	14-26	380	60
Ø2200*7000	21.7	35	<=25	0.074-0.4	15-28	380	62
Ø2200*7500	21.7	35	<=25	0.074-0.4	15-30	380	64.8
Ø2400*3000	21	23	<=25	0.074-0.4	7-50	245	54
Ø2400*4500	21	30	<=25	0.074-0.4	8.5-60	320	65
Ø2700*4000	20.7	40	<=25	0.074-0.4	12-80	380	94
Ø2700*4500	20.7	48	<=25	0.074-0.4	12-90	480	102
Ø3200*4500	18	65	<=25	0.074-0.4	-----	800	137
Ø3600*4500	17	90	<=25	0.074-0.4	-----	850	158
Ø3600*6000	17	110	<=25	0.074-0.4	-----	1250	175
