Hydraulic brick machine

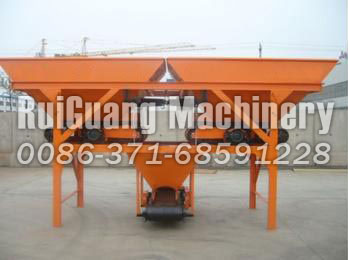

PLD series automatic batching machine is a automatic batching plant can be used with mixer collocation, it to be able to complete the automatic proportioning according to user requirements: fly ash, stone, 3 -- 7 kinds of materials such as lime and cement ingredients program. This series of products adopt computer control, electronic surveillance, digital tip, wired remote control, has high accuracy of weighing precision, ingredients, high speed, good control function and convenient operation, etc.
Electronic batching machine used for various size autoclaved fly ash brick or lime-sand brick production line. Can effectively guarantee the batching accuracy, improve the productivity. It is simple, reliable use, convenient operation and maintenance. Due to the measurement accuracy, can effectively guarantee the quality of fly ash or lime-sand brick. Electronic batching machine is a kind of new ingredient machinery, adapted to the general construction sites, roads, Bridges and other projects.
|
model
|
PLD1200
|
PLD1600
|
PLD2400
|
PLD3200
|
|
Feeding capacity (L)
|
1200
|
1600
|
2400
|
3200
|
|
Cycle (S)
|
60
|
60
|
60
|
60
|
|
Ingredients error <
|
±2%
|
±2%
|
±2%
|
±2%
|
|
Productivity (m3 / h)
|
56
|
75
|
120
|
160
|
|
The belt speed (M/S)
|
1.25
|
1.6
|
1.6
|
1.6
|
|
Motor power (kw)
|
15
|
27.5
|
11
|
15
|
|
Mass (Kg)
|
4500
|
5600
|
8500
|
10200
|
