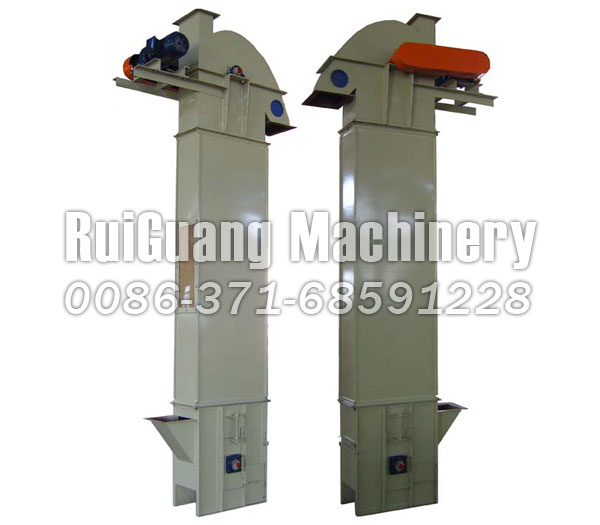

Bucket elevator


Bucket elevator is suitable for low to high, supply of materials through the shaking table into hopper machine automatic continuous operation up after delivery. According to the transmission quantity adjustable speed and on-demand select hoisting height, hopper for design and manufacturing, PP non-toxic hopper type make the bucket elevator is more widely used, all dimensions are designed and manufactured according to actual needs, to form a complete set of vertical packaging machine, computer measuring machine design, applied to food, medicine, chemical industrial products, screws, nuts and other products of ascending feeding, through signal identification of the packaging machine to control the machine to stop automatically rev.



Specification
Max. lifting height
(m)
Conveying amount
(m3/n)
Pitch of buckets
(mm)
Motor power(kw)
160 type
28
3-8
500
3-7.5
200 type
31.5
6-15
500
3-7.5
250 type
30.16
10-25
500
4-11
300 type
30.16
25-35
500
5.5-15
350 type
31
19-40
600
7.5-18.5
400 type
32
35-50
600
7.5-22
450 type
32.7
42-60
600
7.5-22
