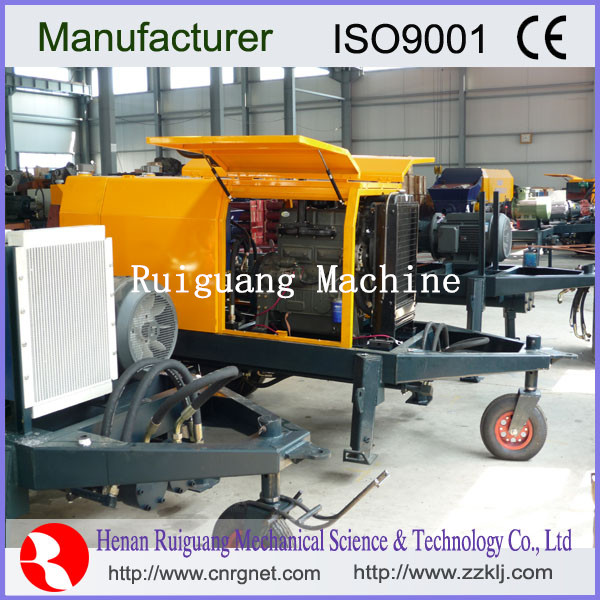

HN-30B trailer mounted concrete pump

Ruiguang company are providing our customers not only the brick machinery but also concrete making machinery.
Here we introduce one of our best selling product HNB30 concrete pump,this pump can be electric or diesel type,different types of capacity can be choosed.Below are detials of our HNB30 small trailer mounted concrete pump.

Application
      ·   Stone concrete conveying
      ·   Floor heating construction
      ·   Tunnel and underground construction
      ·   Mortar conveying
      ·   Used as spray pump when Installed with incidental spraying equipment, for concrete, mortar, refractory material and green soil spraying
      ·   HN40~60 Concrete pumps are applied for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power, mining and national defense.
-------------------------------------------------------------------------------------------------------------------------------------------------------

Features

· use S-valve to switch the direction, for fine stone concrete conveying
· good sealing S-valve, installed with floating wear resistant ring
· High-quality wear resistant alloy components for long service-life
· high delivery pressure for demand of high-rise and long distance projects
· double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
· air cooling system, without dependence of external water supply
· with re-pumping function to smooth construction of better accessibility
· automatic lubrication system for long service-life
· PLC system to ensure best electrical control performance
· equipped with wired remote controller, easy to operate

-------------------------------------------------------------------------------------------------------------------------------------------------------

Main Technical Parameters


Product name	HN-30B electric concrete pump	HN-30B diesel concrete pump
Theory pumping pressure (Mpa)	10	10
Theory output (m3/h)	30	30
Max.level transmission distance (m)	300	300
Max.vertical conveying height (m)	110	110
Power (kw)	45	46
Type of distribution valve	S valve	S valve
Hopper volume (m3)	0.35	0.35
Hydraulic fluid tank volume (L)	150	180
Max.diameter of aggregates (mm)	30	30
